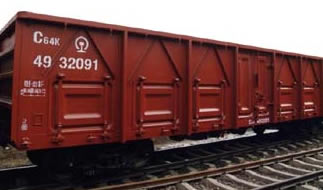

C64K open-top wagon

Main structure: the car consists of car body, braking system, coupler an buffer, bogie and so on. The car body, consists of under frame, side wall , end wall, car door and other components, railway car is full of steel weld structure. The bogie is K2 type. The air braking system is type 120 control valve with 254mm-diameter integral spinning sealed type brake cylinder and ST2-250 bidirectional brake railway car shoe clearance adjuster. Manpower braking equipment is NSW hand brake. The coupler and buffer is number 13 top operation coupler in C-level steel material and MT-3 buffer.

C64K open-top wagon

Main use: this railway car is used to load and transport coal, ore coke, building materails, mechanical equipment, woods and containers and bulk or case cargo.

C64K open-top wagon



C64K open-top wagon

Main technical parameters

Loading capacity(t)
61
Tare weight(t)
<23
Min. radius of curvature negotiable(m)
145
Volume(m3)
73.3
Special volume(m3/t)
1.2
railway car Axle load(t)
21
Load per meter of track(t/m)
<6.25
Length of car(mm)
13430
Length between vehicle centers(mm)
8700
Max. width of vehicle(mm)
3242
Max height of vehicle(mm)
3149
Fixed wheel base(mm)
1750
Commercial operation speed(km/h)
120
