Washing detergent making machine

Washing detergent making machine[08-12-24 11:26:25]

Our washing powder machinery adopts ideal producing technique and is able to produce various types of high-grade, middle-grade and low-grade washing powder, detergent, simultaneously it can multipurposely produce all kinds of powdery, granular and paste washing products such as washing paste and ecology cleansing powder without water, potent industrial detergent, it also can produce part of essential chemical raw materials such as enzyme, it will be a very profitable in regions such as Africa, Middle East, South America and other place.

Data below are generally based on our previous successful projects and are only for your reference, we can adjust the parameter according to your requirements.
washing powder machine


The principle is to combine the slurry inflating craft and different directions & speeds cutting granulation without tower, and combines chemically water, common soda, anhydrous sodium sulfate, sodium silicate, surface active agent and other supplemental materials which are easy to buy in market in the condition of room temperature, then forms oxygen-contained granular detergent without phosphorus or boron by homogenization chemical combination and different directions & speeds cutting.

washing powder machine

Brief Working Process: inserting raw materials in turn →twin screws in-phase with different speeds cutting and emulsification →program control response →hot air inflating, soft items cutting and granulation →automatically turns the kettle discharging → transporting → cooling, plastic and sieving →adding essence and enzyme →finished product.

No.
Equipment Name
Quantity
Unit
1
Automatic feeder
1
Table
2
Mainframe
1
Table
3
U-type screw conveyer
1
Table
4
U-2 type screw conveyer
1
Table
5
Cyclone aging drying tower
1
Table
6
Packaged air conditioner
1
Table
7
Dust-cleaning tower
1
Table
8
Double-screw granule-molding machine
1
Table
9
Feeding hopper
1
Table
10
Distribution box
1
Table
11
Automatic dosing filling and bagging capper (Options for clients)
1
Table
12
Operation platform
1
Set
Remarks: Two kinds : A –type filling specification: 50g -350g (adjusted by the mould)
B–type filling specification: 50g -1000g (adjusted by the mould)
Notes: 6 semi-automatic cappers can be used instead, whose price is only RMB1000 /table, adapt to 200g to any kind of specification.
Dimension : L × W × H= 1m × 0.6m × 0.5m
Power : 1KW Voltage : 220V
Weight: 30kg /table × 6
Out-put : 2t/h
Working area : L × W × H= 15m × 4.5m × 4m
Workers : 5-8 people/product line
Total Power : 17.77KW
Total Weight : 4990kg
Total Volume : 52.66m3
Remarks : Voltage and other requirements can be satisfied according to the clients.

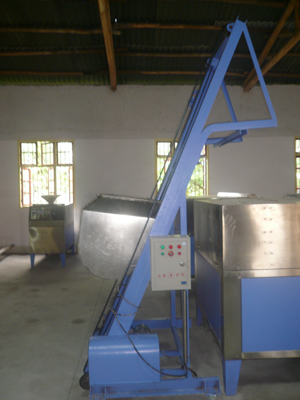

Automatic feed machine

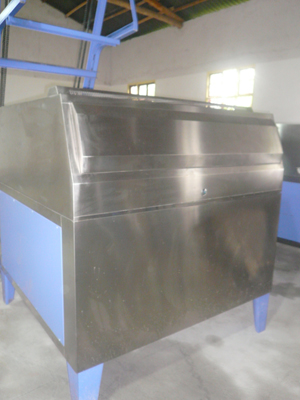

Main emulsification

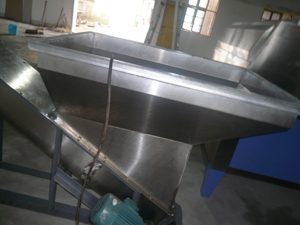

Buffer funnel

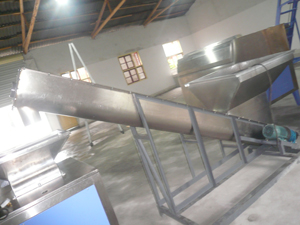

U Style Screw Conveyor

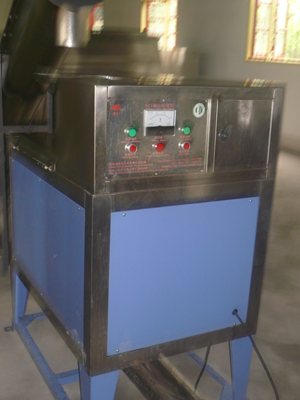

Particle Forming Machine

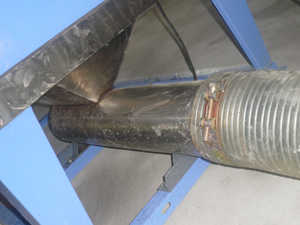

Suction Machine

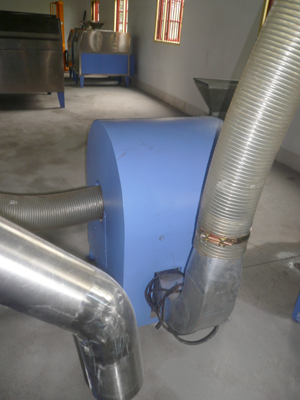

Air Cooler

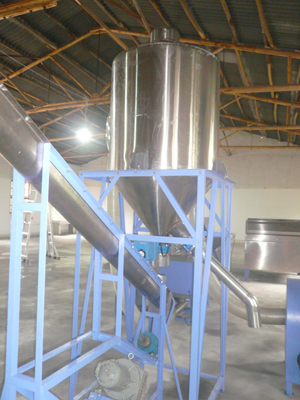

Cyclone Drying Machine

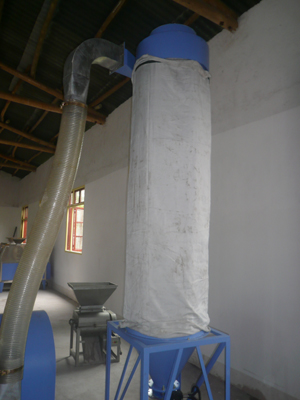

Dust Removal Machine

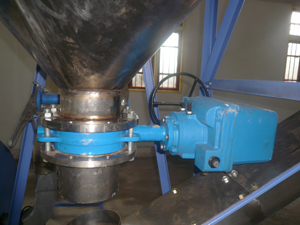

Electromagnetic Control
U Style Screw Conveyor

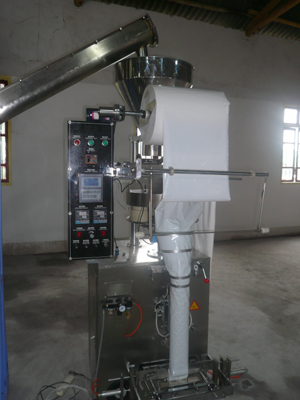

Seal & Pakaging



The raw material of washing powder (For Reference)

Anhydrous sodium carbonate
Anhydrous sodium sulfate
Carboxyl methylcellulose
Sulfonic acid
Sodium silicate
Water
Enzyme (can produce it by yourself)
Perfume

After saling washing powder making machine, if necessary, We will send one or two engineers to set up and commissioning of the washing powder making machine until it running in normal state. Druing the time your workers who will operate the washing powder making machine will be trained
