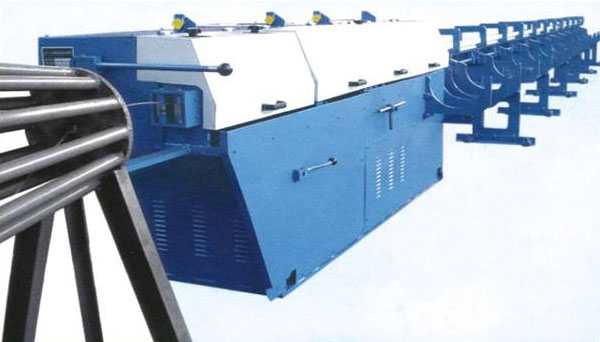

STRAIGHTENING AND CUTTING MACHINE

STRAIGHTENING AND CUTTING MACHINE;STRAIGHTENING AND CUTTING MACHINE;STRAIGHTENING AND CUTTING MACHINE;STRAIGHTENING AND CUTTING MACHINE;STRAIGHTENING AND CUTTING MACHINE;[07-06-06 15:14:48]

Working parameters

Wire diameter	Ø5 - Ø12 coil and cold rolling ribbed wire Ø5 - Ø12 hot rolled rebar
Cutting length	6m (also can be defined by customers)
Speed	High speed 130m/min
	Medium speed 100m/min
	Low speed 75m/min
Tolerance of cut-to-length	≤±1mm
Linearity of straightening	≤±2mm/m
Power	Cutting motor 4 Kw
Power	Straightening motor 22 Kw
Main machine dimension	3040×1125×1310mm
Color ORINGE , blue

Attachment 1: Scope of supply

Components		type	quantity
1	Storage unit	GT5/12	1set
2	Cone-shaped feeding pockets	GT5/12	1set
3	Main machine	GT5/12	1set
4	Feeding discharge outlet	GT5/12	12M
5	Operator platform	GT5/12	1set
8	Free tools	GT5/12	1set
9	Free spare parts	GT5/12	1set

Attachment 2 Free tools

	Tool name	specification	quantity
1	hatch spanner	5.5-32mm	1set
2	single hatch spanner	36mm	1set
3	inner six- angle spanner	3-19mm	1set
4	inner six- angle special spanner	M24	1set
5	active spanner	12”	1set
6	stuffing ruler	100mm	1set
7	hand hammer	2.5poud	1set
8	hook spanner	80mm	1set

Attachment 3 Free spare parts

Spare parts name

specification

quantity

1

cutting blade

JZJ－04－23

5set

2

cutter bush

JZJ－04－28

6

3

straightening jaws

JZJ－02－10

50

4

SPA narrow V belt

L=2500mm

10

5

SPA narrow V belt

L=2240mm

8

6

Narrow V belt

17×1380

4

7

long guide sleeve

JZJ－05－30－1

1

8

cutting signal approached switch

LJM12A-4Z/NKS

2

9

unload door restore spring

4

10

rapidly screwed pipe tie-in

4

11

PV plastic tube

φ8 1.0MPa

20m

Indication: Above quantity include the fixed spare part.

Attachment4 Origin place and brand of important components

Serial no

name

brand

Origin place

1

Electric system

Siemens

GERMAN

2

Elec-maganetic valve

SMC

Japan

3

Bearing

SKF

Sweden

4

cylinder

YADEC

TAIWAN

5

sensor

GERMAN

	Spare parts name	specification	quantity
1	cutting blade	JZJ－04－23	5set
2	cutter bush	JZJ－04－28	6
3	straightening jaws	JZJ－02－10	50
4	SPA narrow V belt	L=2500mm	10
5	SPA narrow V belt	L=2240mm	8
6	Narrow V belt	17×1380	4
7	long guide sleeve	JZJ－05－30－1	1
8	cutting signal approached switch	LJM12A-4Z/NKS	2
9	unload door restore spring		4
10	rapidly screwed pipe tie-in		4
11	PV plastic tube	φ8 1.0MPa	20m
Indication: Above quantity include the fixed spare part.

Serial no	name	brand	Origin place
1	Electric system	Siemens	GERMAN
2	Elec-maganetic valve	SMC	Japan
3	Bearing	SKF	Sweden
4	cylinder	YADEC	TAIWAN
5	sensor		GERMAN
