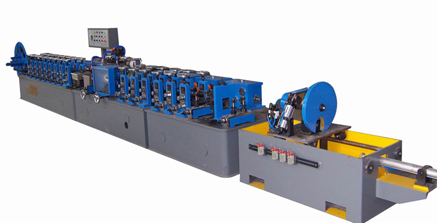

Stainless Steel Welded Pipe Production Line

Stainless Steel Welded Pipe Production Line[09-09-29 11:12:10]



Introduction of Stainless Steel Welded Pipe Production Line
Our Stainless Steel Welded Pipe Production Line is designed by computer-assistant engineering and high technology. The Stainless Steel Welded Pipe Production Line has proven high efficiency, low maintenance and energy-saving during years of practice.

The product is new generation stainless steel welded pipe productobased on advanced international technology and many overseas product analysis with optimizing design and high level in domestic market. For detailed information,please visit www.welding-pipe.cn

Products Information of Stainless Steel Welded Pipe Production Line

 CLIMA can supply different stainless steel welded pipe production line with different capacity. Please don't hesitate to contact us if you get any question. For more detail information, please visit our webisite about the welding pipe productio line:www.welding-pipe.cn

We are also excel at building a plant for the stainless steel welded pipe and excute turnkey projects. We can design the project and the proposal just for you, besides that, we can also provide investment analysis and products strategy.

Stainless Steel Welded Pipe Production Line


Capacity:
1、Pipe ID:7mm-20mm 2、Thickness:0.3mm-0.9mm 3、Speed:3-7m/min
■List-head decoiler
Description: manual tension and manual brake device
Parameters:
(1)The max. weight of coil:400kg (2)The inside diameter of coil:300-350mm (3)The max. outside diameter of coil :1000mm (4)The max .width of coil: 110mm
■Main drive
1.The main motor is driven by model YVP132M1-6,7.5kw Change frequency motor
2.Model WPA135 speed reducer ,the ratio is 40∶1
3. Adopt adjustable speed device with frequency conversion
■Clean slot
1. Mode: welded by PVC board, nylon roller and PVC bar
■Cutting saw
A.Travel Switch Baffle Device 1.The max .diameter to be cut :Φ20mm 2.The range of cutting length :4m-7m 3.The max. wall thickness to be cut :0.9mm
B Type : round metal saw blade: Φ300mm×Φ30mm×3.0mm
C. Power of the saw: 1.5kw
D. Accuracy of the cutting length :within±0.3mm
■Discharging table
Conveyed onreversed pneumatically
■Argon Arc Welder
1.Model:WSM-400A 2.Input power: 380V、50HZ 3.Output power:12KVA






Stainless Steel Welded Pipe Production Line


Capacity:
1、Pipe ID:13mm-30mm 2、Thickness:0.4mm-1.5mm 3、Speed:3-7m/min

■List-head decoiler
Description: manual tension and manual brake device
Parameters:
(1)The max. weight of coil:300kg (2)The inside diameter of coil:300-350mm (3)The max. outside diameter of coil :1000mm (4)The max .width of coil: 110mm
■Main drive
1.The main motor is driven by model YVP132M-4, 7.5KW Change frequency motor
2.Model ZSY160 speed reducer ,the ratio is 80∶1
3. Adopt adjustable speed device with frequency conversion
■Clean slot
1. Mode: welded by PVC board, nylon roller and PVC bar
■Cutting saw
A.Travel Switch Baffle Device 1.The max .diameter to be cut :Φ30mm 2.The range of cutting length :4m-7m 3.The max. wall thickness to be cut :1.5mm
B Type : round metal saw blade: Φ300mm×Φ30mm×3.0mm
C. Power of the saw: 1.5kw
E. Accuracy of the cutting length :within±0.3mm
■Discharging table
Conveyed onreversed pneumatically
■Argon Arc Welder
1.Model:WSM-500A 2.Input power: 380V、50HZ 3.Output power:18KVA




Stainless Steel Welded Pipe Production Line


Capacity:
1、Pipe ID:20mm-76mm 2、Thickness:0.6mm-2.0mm 3、Speed:3-7m/min

■List-head decoiler
Description: manual tension and manual brake device
Parameters:
(1)The max. weight of coil:400kg (2)The inside diameter of coil:300-350mm (3)The max. outside diameter of coil :1000mm (4)The max .width of coil: 250mm
■Main drive
1.The main motor is driven by model YVP160L-4,15KW Change frequency motor
2.Model ZSY160 speed reducer ,the ratio is 80∶1
3. Adopt adjustable speed device with frequency conversion
■Clean slot
1. Mode: welded by PVC board, nylon roller and PVC bar
■Cutting saw
A.Travel Switch Baffle Device 1.The max .diameter to be cut :Φ76mm 2.The range of cutting length :4m-7m 3.The max. wall thickness to be cut :2.0mm
B Type : round metal saw blade: Φ400mm×Φ32mm×3.0mm
C Power of the saw: 3kw
E. Accuracy of the cutting length :within±0.3mm
■Discharging table
Conveyed onreversed pneumatically
■Argon Arc Welder
1.Model:WSM-630A 2.Input power: 380V、50HZ 3.Output power:26KVA




Stainless Steel Welded Pipe Production Line


Capacity:
1、Pipe ID:38.1mm-80mm 2、Thickness:0.8mm-3.5mm 3、Speed:1-5m/min

■List-head decoiler
Description: manual tension and manual brake device
Parameters:
(1)The max. weight of coil:1500kg (2)The inside diameter of coil:500-650mm (3)The max. outside diameter of coil :1500mm (4)The max .width of coil: 260mm
■Main drive
1.The main motor is driven by model
YVP180L-4,22KW Change frequency motor
2.Model ZSY200 speed reducer ,the ratio is 80∶1
3. Adopt adjustable speed device with frequency conversion
■Clean slot
1. Mode: welded by PVC board, nylon roller and PVC bar
■Cutting saw
A.Travel Switch Baffle Device
1.The max .diameter to be cut :Φ90mm 2.The range of cutting length :4m-7m 3.The max. wall thickness to be cut :3.5mm B.Type : round metal saw blade: Φ600mm×Φ80mm×5.0mm
C. Power of the saw: 18.5kw
D. Accuracy of the cutting length :within±0.3mm
■Discharging table
Conveyed onreversed pneumatically
■Argon Arc Welder
1.Model:WSM-1000A 2.Input power: 380V、50HZ 3.Output power:46KVA



All the data are base on our 20 stainless steel welded pipe prodction line and are only for customers' reference, we can adjust the specification according to your requirements.
Just a few of them have been listed , please contact us if you want any other kinds of machines.
