Wet tissue packing machine
The product is new generation tissue packing machinery based on advanced international technology and many overseas product analysis with optimizing design and high level in domestic market.
By ten years of is working experience,it brings up a group of professional persons,with the super ability of designing and researching,the long-term cooperation and communion with the professional organizations of home and abroad,concentrating on the products function,stability and automatic degree,eventually receive the favor from the customers of home and abroad by the high quality and competitive price.
|
|

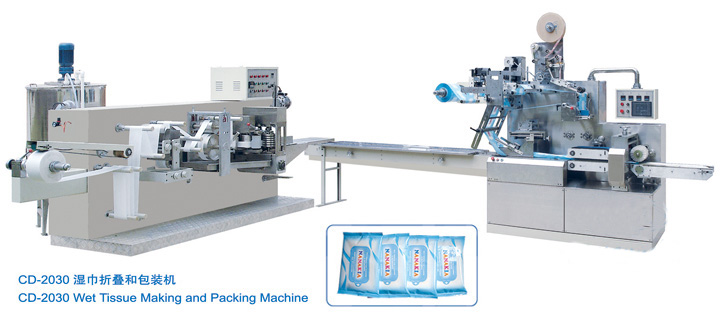

The work flow:unrolling raw material - slitting - folding - wetting - cutting - pile and counting tissue - transport tissue to packing-output finished products. It is high speed and sanitary during the producing processes. 1.Main technical parameter Electrical source:380V 50HZ Suitable material:Spunlace non-woven fabric,Hot-rolling non-woven fabric Specification of material:40g/m2-80g/m2 Production size(unfolded):(150-220mm)×(180-220mm)(L×W) Production size(folded):(150-220mm)×(95-110mm)(L×W) Production speed:1800-2500pcs/min Parent roll size:width:1000-1500mm,dia:800-1200mm Folding way:Z,W,C (type, pop up or non pop up, the glue machine is option) Counting way:auto-counting,quantity changeable pile system Power:16KW Humidification agitating system:double agitating Control system:PLC control system ,color touching screen Machine size(mm):10150×3150×2000(L×W×H) Water tank size(mm):2000×1100×1900 Weight of machine(kg):8000 Option:1.Full auto transportation part, according to customer’s requirement can have 90 or 180 degree conor. 2. Glue Machine |
|
|
|

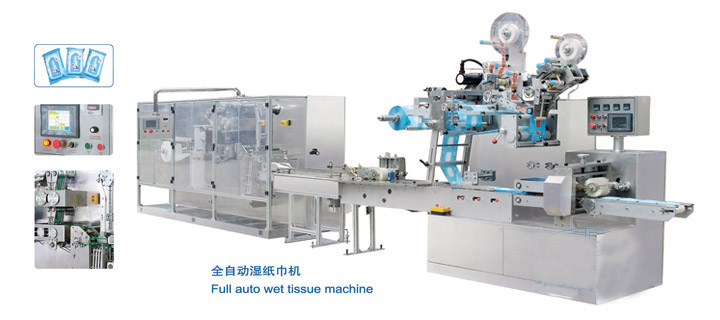

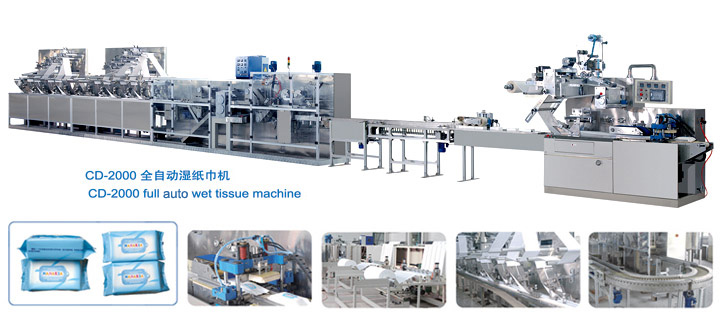

Full auto wet tissue machine, it is suitable for 5-20pcs per package packing, the operation of the machine is easy and the function is very steady. The part touch with the liquid is made by stainless steel, the machine is controlled by PLC, the machine with beautiful outline. The work flow: unrolling raw material-folding - wetting - cutting - pile and counting tissue - transport tissue to packing - output finished products. All the processes are finished on the machine. |
|
|

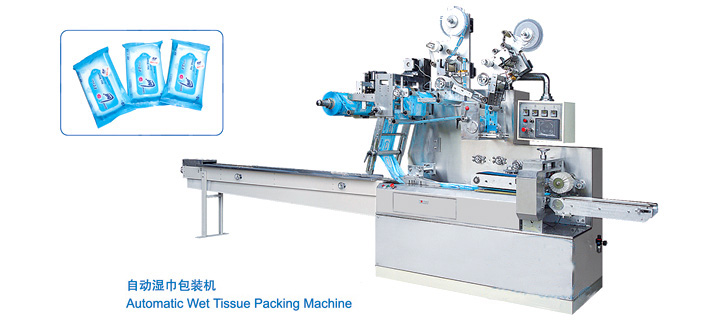

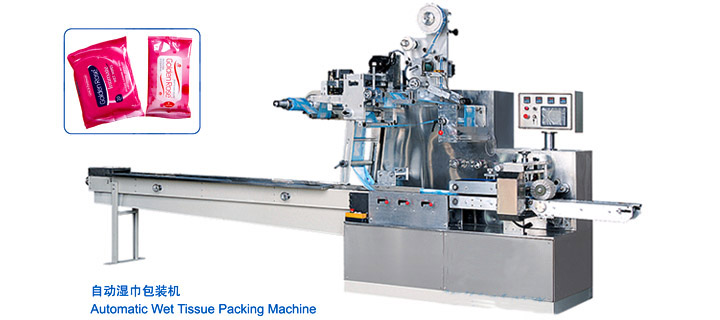

The cover of machine and the parts which had touched with the production is made by stainless steel,the machine is beautiful and the product is sanitary. Wetting on the process,it leads the product uniformity,auto-counting, easy packing. There is stand by paper,it is easy to change the material,auto-stop when the material is use up. The packing machine is suitable for 5-30 pieces per package. The number per package can be adjusted in your requirement. The outline of machine is made by stainless steel. The PLC control system and the color touching screen will use the brand of Japan or Taiwan. It is easy to operate and the production speed is high. The function is steady. |
|
|
Main technical parameter |
|
|
|
Main technical parameter |
|
All the data are base on our 20 wet tissue packing production line and are only for customers' reference, we can adjust the specification according to your requirements.
Just a few of them have been listed , please contact us if you want any other kinds of machines.
