Clad pipe production line

Clad pipe production line[10-03-09 18:31:13]

Introduction of Clad Pipe Production Line

Our Clad Pipe Production Line is designed by computer-assistant engineering and high technology. The Clad Pipe Production Line has proven high efficiency, low maintenance and energy-saving during years of practice. The company is engaged in clad pipe producing machinery development, production, sales and service.

The product is new generation clad pipe producing machinery based on advanced international technology and many overseas product analysis with optimizing design and high level in domestic market.

Products Information of Clad Pipe Production Line

PP-R GLASS FIBER REINFORCED PIPE PRODUCTION LINE

FEATURE AND FUNCTION:
PP-R pipe system is popular in developed countries, which is sanitary, nontoxic, and environmentally friendly. It also owns advantages for heat resistance, pressure resistance, energy saving, and service life.

Main Technical Parameters
TYPE	OD RANGE(mm)	EXTRUDER	OUTPUT(kg/h)	INSTALLED POWER(kw)	LINE LENGTH（m）
PP-R-63A	20-63	SJ65、SJ45	120	94	35
PP-R-110A	63-110	SJ75、SJ45	180	175	42
PP-R-160A	75-160	SJ75、SJ45	250	215	45

PVC FOAM CORE PIPE PRODUCTION LINE

PVC three layer pipe is used for water drainage, the outside layer and inside layer is made of rigid PVC, and the middle layer is made of special formulation.
FEATURES:
1. Saving raw material (density: 0.9-1.2g/cm³)
2. Smooth inside wall and low friction
3. High impact resistance, the ring stiffness is 2 times the strength of normal rigid PVC
4. Stable, applicable for temperature range: -30℃-70℃
5. High noise insulation
6. Safely protected from fire
7. Long service long
8. Low installation charge, good benefits

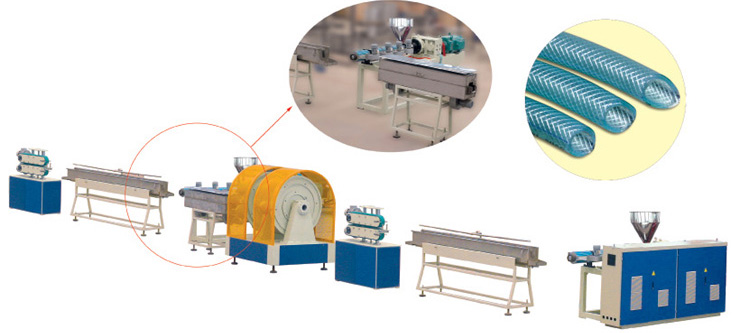

	PVC FIBER REINFORCED PIPE PRODUCTION LINE
FEATURE AND FUNCTION: The pipe is three layer pipe, inner payer and outer layer are soft PVC material with fiber in the middle layer. It is transparent and non-poisonous. It is anti-pressure, anti-tension, andti-arc, etc. The pipe is the best choice for gas and liquid supply when under temperature condition of 0-65℃.

All the data are base on our 20 Clad Pipe Production Line and are only for customers' reference, we can adjust the specification according to your requirements.
Just a few of them have been listed , please contact us if you want any other kinds of machines.
