Introduction of Bottled Water Equipment
Our Bottled Water Equipment is designed by computer-assistant engineering and high technology. The Bottled Water Equipment has proven high efficiency, low maintenance and energy-saving during years of practice. The company is engaged in bottled water machinery development, production, sales and service.
The product is new generation bottled water machinery based on advanced international technology and many overseas product analysis with optimizing design and high level in domestic market.
Products Information of Bottled Water Equipment
CLIMA is engaged in Researching, development, dessigning and exporting bottled water equipment for more than 20 years. We can provide all kinds of bottled equipments including 3/5 gallons bottling equipment, 5 gallon filling machine, water vending machine, water purification systen, reverse osmosis system, bottling machine, Industrial ultrafiltration and desalination system and many relater apparatus, such as cap remover, bottle loader, cap shrinker,etc. We have been contributed much for national and international bottled water market development.
We hold rich experience on bulding the full production line for you and excute turn key projects. Welcome to visit our company and factory. Any requirement, please do not hesitate to contact us, we will provide you the best solution.
|

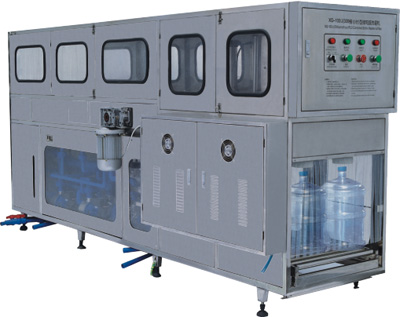

- 5 gallon Water Equipment
-
|
Product Name: (300 buckets/H))
Type |
XG-100/J(300buckets/H) |
Power |
380V% 50Hz |
Input power( KW) |
4.8 KW |
Bottle's spec(mm)(mm) |
270x490x56 |
230x460x56 |
Bottle's volume |
5gallons or 3gallons |
Capsule's spec(mm) |
58×40 |
The capability of compress air |
P0.6MPa |
Wash bottle's capability |
300buckets/H |
Bottle filling capacity |
300buckets/H |
Out size(mm) |
3550x960x1550 |
Weight (kg) |
G.W(kg) |
450 |
N.W(Kg) |
400 |
The direction of bottle output |
Bottle output with linear direction |
|
|
|
|
|
|
|
|
-

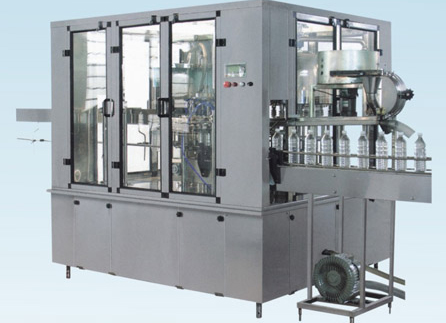

Bottled water equipment
-
|
Model |
JFP12 negative pressure pure water filling machine |
The number of filling heads |
12 |
Bottleneck's inside diameter |
15-18mm |
Bottle's body outside diameter |
55-95mm |
Bottle's height:190-310mm |
190-310 |
Produce capability |
1500-2500 |
Regulate speed electromotor |
YCT112-4B 0.75 KW
125-1250r/min |
Speed-down electromotor |
WHT100-50VⅢ |
Weight |
1000kg |
Out size(L x W x H) |
1000x800x2000mm |
Power |
AC380V5%50Hz |
|
|
-

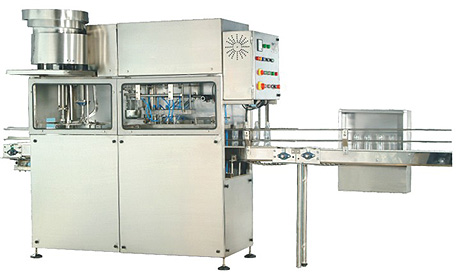

Washing Filling and sealing 3 in 1 water production line
|
The series equipment is used in producing all kinds of water contained with polyester bottle. Washing filling and sealing can be carried on the same machine. The design og the machine is scientific and reasonable. The appearearence is beautyful and the function is complete. Its operation and maintenance is convenient. Its ahuomation is high. The advanced technology from Germany and Italy are employer. He speed of filling is fast and the liquid amount is controlled accurately. The filling device can be stopped automatically when there is no bottle or bittles is damaged. the advanced auto-washing technology can, also be fixed, and the caps will not be damaged. The capping is reliable. |
All the data are base on our 20 bottled water production line and are only for customers' reference, we can adjust the specification according to your requirements.
Just a few of them have been listed , please contact us if you want any other kinds of machines.
