Milk Filling Machine

Milk Filling Machine[09-11-05 16:37:35]



Introduction of Milk Filling Machine
Our Milk Filling Machine is designed by computer-assistant engineering and high technology. The Milk Filling Machine has proven high efficiency, low maintenance and energy-saving during years of practice. The company is engaged in soap producing machinery development, production, sales and service.

The product is new generation milk filling machinery based on advanced international technology and many overseas product analysis with optimizing design and high level in domestic market.
Products Information of Milk Filling Machine

 Gable top carton filling machine is a kind of small type equipment, in low automation degree and small amount of output. They are specially designed by CLIMA based on companies’characteristics and Market’s concrete situation. The equipments are with small footprint, in low power consumption, and easily operated and maintained; the price of them is comparatively low, which is an ideal equipment for small and medium-sized company, for company with low output who want to produce high grade gable top carton products.

Flowchart: Purchased Carton→ Bottom Preformed → Bottom Molding → Capping→ Filling → Top Preformed → Top Molding→ Seal → Print date → Gable Top Carton Products→cold storage
The whole process is automatically controlled by computer program,only need one person to operate.

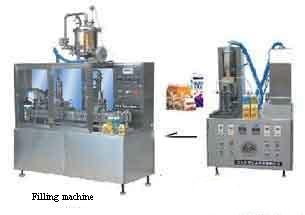

Gable Top Carton Filling Machine



The operation of filling machine is automatically contralled by computer programme, others are controlled by electric apparatus. The whole progress is controlled by PLC, needs 3 persons to operate.
二、Production Varieties:
All kinds of fruit juice beverage, milk and yoghourt beverage, tea beverage, cereal beverage, fruit vinegar juice, fresh milk, yoghurt such products’ filling.
三、Technical parameter:
1、Capacity : 250, 350, 500, 750, 1000ml, which can be filled in the same machine
2、Output : 1000 boxes/hour (by 500ml)
3、Packing material:Type B carton with aluminum-foil or A type milk carton,bottom size 70mm*70mm
4、Cap:without cap
5、Overall Power : 23KW(three phases of power electricity)
6、Size:(L*W*H, m): Box-making machine : 1.24*0.84*1.50m
Filling machine : 2.0*0.85*2.6m
7、Compressed air: Pressure:1.0-1.4Mpa、 Flow rate:1.4-2M3/min,without oil, water & dust
8、Cooling water:Flow volume:≥40L/ min Temperature:≤15℃
9、Net Weight: 1100kg, (box formation machine: 300kg, filling machine: 800kg)
10、Installation Requirement:Cement, floor tile, plastic ground, any one is OK. Do not need to make angle.

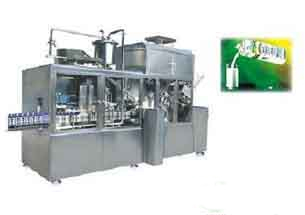

Gable Top Carton Filling Machine


The whole process is automatically controlled by computer program,only need one person to operate.
二、Production Varieties:
All kinds of fresh fruit, dairy beverage, pure milk, yoghourt and yoghourt beverage etc.

三、Technical parameter:
1、Packing capacity: 1.5L,2L, which can be filled in the same machine
2、Production quantity:1500 Boxes/hour(by 500ml)
3、Package material:A type milk carton, bottom size 95mm*95mm
4、Cap:with cap & without cap, two ways to choose
5、Filling temperature:cold filling: 0-50℃
6、Configure with hydrogen peroxide disinfecting spray device and hot air drying device accordingly (the inner wall of carton and caps)
7、Air in the filling bin: aseptic, dry, barotropic hot air (150--200℃)
8、Compressed air: Pressure:1.0-1.4Mpa、 Flow rate:1.4-2M3/min,without oil, water & dust
9、Cooling water:Flow volume:≥40L/ min Temperature:≤15℃
10、Power rate for whole set:33KW
11、Aspect Size:(Length*Width*Height)4.0*1.6*2.8m
12、Machine weight:3800KG
13、Installation Requirement:Cement, floor tile, plastic ground, any one is OK. Do not need to make angle

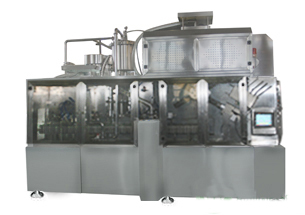

Gable Top Carton Filling Machine



1、Production Varieties:
Fresh milk, clabber, thin cream, lactic acid and fresh juice etc.
1、Packing capacity:180、250、500ml,which can be filled in the same machine
2、Production quantity:2200 Boxes/hour(by 500ml)
3、Box material:A type milk carton(cardboard), bottom size 57mm*57mm
4、Cap:with cap & without cap, two ways to choose
5、Filling temperature:5-50℃
6、Sehlf life:Pure milk, clabber 7-21 days (storage under 2-6℃)
Acid juice beverage 30-60 days (storage under 2-6℃)
Non dairy cream 12 months (freeze under -18℃)
7、Power rate for whole set:23KW
8、Compressed air: Pressure:1.0-1.4Mpa、 Flow rate:1.4-2M3/min,without oil, water & dust
9、Cooling water:Flow volume:≥40L/ min Temperature:≤15℃
10、Aspect Size:(Length*Width*Height)2.1*1.6*2.6m
11、Machine weight:2500KG
12、Installation Requirement:Cement, floor tile, plastic ground, any one is OK. Do not need to make angle.

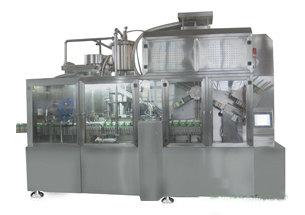

Gable Top Carton Filling Machine


1. Production Varieties:
Fresh milk, clabber, thin cream, lactic acid and fresh juice etc.
1、Packing capacity:500、750、1000ml,which can be filled in the same machine
2、Production quantity:2000 Boxes/hour(by 500ml)
3、Box material:A type milk carton(cardboard), bottom size 70mm*70mm
4、Cap:with cap & without cap, two ways to choose
5、Filling temperature:5-50℃
6、Sehlf life:Pure milk, clabber 7-21 days (storage under 2-6℃)
Acid juice beverage 30-60 days (storage under 2-6℃)
Non dairy cream 12 months (freeze under -18℃)
7、Power rate for whole set:18KW
8、Compressed air: Pressure:1.0-1.4Mpa、 Flow rate:1.4-2M3/min,without oil, water & dust
9、Cooling water:Flow volume:≥40L/ min Temperature:≤15℃
10、Aspect Size:(Length*Width*Height)3.7*1.6*2.8m
11、Machine weight:3000KG
12、Installation Requirement:Cement, floor tile, plastic ground, any one is OK. Do not need to make angle.

All the data are base on our 20 Milk Filling production line and are only for customers' reference, we can adjust the specification according to your requirements.
Just a few of them have been listed , please contact us if you want any other kinds of machines.
