Aerosol Filling Machine

Aerosol Filling Machine, Aerosol Filling Machine, Aerosol Filling Machine, Aerosol Filling Machine, Aerosol Filling Machine, Aerosol Filling Machine, Aerosol Filling Machine, Aerosol Filling Machine, Aerosol Filling Machine[09-01-07 19:06:06]

Our automatic aerosol filling production line consists of a rotary bottle handling machine, a automatic liquid filling machine, a operation platform for vavle inserting, a automatic sealing and gas inflating machine, a operation platform for capping, and a complete set of conveyor.
It can be used continuously in bottle handling, liquid filling, valve inserting, sealing and gas filling , capping automatically.
The productivity is 30-40 cans per minute.
The machine features with high productivity, safety and reliability, simple operation and convenient maintenance.
aerosol filling machine

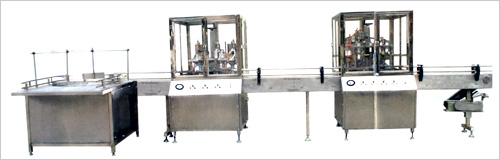

QG-HA type automatic aerosol filling production line

aerosol filling production line

QG-HA type automatic aerosol filling production line consists of a rotary bottle handling machine, a automatic liquid filling machine, a operation platform for vavle inserting, a automatic sealing and gas inflating machine, a operation platform for capping, and a complete set of conveyor.
It can be used continuously in bottle handling, liquid filling, valve inserting, sealing and gas filling , capping automatically.
The productivity is 30-40 cans per minute.
The machine features with high productivity, safety and reliability, simple operation and convenient maintenance.

Technical parameter

Max. Filling Capacity(ml)
600
Applicable Aerosol Can
Height(mm)
150-350
Diameter(mm)
φ52-φ65
Max. Gas Filling Capacity(ml)
600
Working pressure(Mpa)
0.65-1
Filling Accuracy
±1%
Max. Gas Consumption(Mpa)
3
Productivity(can/min)
30-40

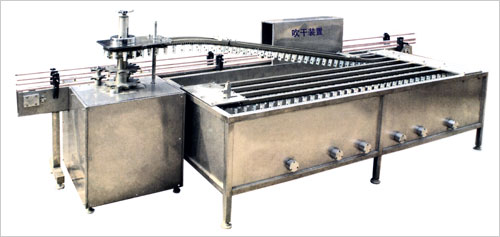

Model QSJ-3 type leakage inspector

aerosol filling production line

Model QSJ-3 hanging type automatic aerosol water bath leakage inspector has been developed by advanced technology. It is used in testing all kinds of aerosols. The testing efficiency is 50-70 cans per minute and the products can be 100% tested.
The explosion-proof motor equipped with automatic overload separator is used as the main driving device and therefore ensures safe operation of the complete machine. In the water tank is installed a flameproof electric heater which can heat the water to the temperature required and control the temperature automatically.

productivity(can/min)
50-70
Temperature control Accuracy
±1℃
power of Main Drive Device(KW)
0.75
Water Tank Capacity(M3)
1.2
Water-Heating Power (KW)
36
Drying Air Pressure(Mpa)
0.3-0.6
Control Cabinet and Heater Type
Prevent blast
Max. Air Consumption(M3/min)
0.6

After saling aerosol filling machine, if necessary, we will send one or two engineers to set up and commissioning of the aerosol filling machine until it running in normal state. During the time your workers who will operate the aerosol filling machine will be trained.
